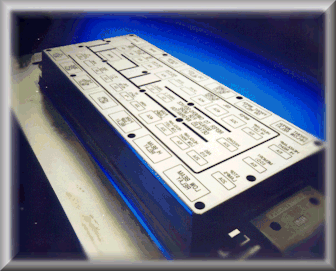

|The cavity block above was engraved to a depth of .010
all engraving was taken directly from an AutoCad file
which was E-Mailed from the manufacturer to us. This
part went from us to molding with NO polishing needed!

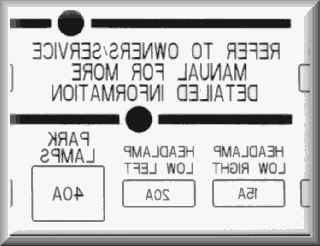

|Above is a photo
of one section of the cavity block at left.
The characters have virtually square corners while the
details have the radius specified by the print.
